LowSensitivity SallenKey Filter Design with the HP41C Programmable Calculator
December 21, 2008
This program, which I originally wrote for the HP67 calculator, addresses the problem of designing second order single opamp low and highpass filters using the SallenKey topology.
The SallenKey filter topology has the advantage of using a minimum of components. The simplest SallenKey filters use only two resistors and two capacitors. Additional resistors may be added for input attenuation (lowpass only) and gain adjustment. The following schematics illustrate these generalized SallenKey circuits:

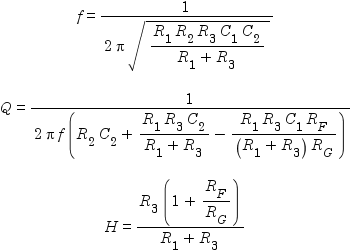

The equations governing the lowpass filter are as follows,
where f is the filter’s cutoff frequency, Q is its “quality”, and H is its gain at the cutoff frequency. The corresponding equations for the highpass filter are:
The mathematically inclined will notice that in each case, there are three equations in either nine or ten variables. Thus there is no single “right” solution. At least six or seven of the variables have to be decided arbitrarily (f, Q, H, and three or four component values), at which point the remaining variables (component values) can be solved for. An article by Texas Instruments suggests a number of simplifications to help one choose component values, but this just adds the complication of which simplification to choose.
I recently came across a pair of application notes by National Semiconductor which gives a procedure for designing SallenKey filters to minimize the effect of component value tolerances on the performance of the filter. A sideeffect of this procedure is to reduce the number of inputs to five: f, Q, H, R_{F}, and R, where the latter is simply an indication of the magnitude of resistor values desired for R_{1}, R_{2}, and R_{3}. The procedure then dictates how all the other values are chosen, even adjusting for available “realworld” values part way through the solution.
The program presented here implements this procedure, with some minor changes:

Instead of asking for a desired resistor magnitude, R, the program asks for a capacitor magnitude, C, since in my experience, the capacitors drive the design.
 The formula given for internal gain variable K in the procedure (please refer to the application note) seems to have been derived empirically, and has a jump at Q = 1.1. To make the formula simpler to implement, I modified it slightly to:
The graphs of the original (pink) and revised (blue) formulae show the difference. Testing has shown that the resulting solution is generally at most one realworld capacitor value increment different (with corresponding changes in resistor values of course).
Also, if H > K, then K is set equal to H, since otherwise it will not be possible to achieve the desired gain.

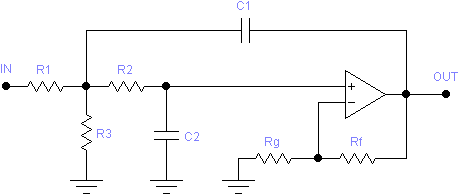

For the lowpass circuit, the desired gain, H, is achieved by a combination of input attenuation, α (controlled by R_{1} and R_{3}), and the internal gain, K, of the filter (controlled by R_{F} and R_{G}). The division of this gain between the two stages depends on H and Q and is chosen to minimize the sensitivity of the circuit to component tolerances. For example, for H = 1 and Q = 2, the attenuator gain is α = 0.629 and the internal gain is K = 1.59, for a net gain of H = αK = 1.

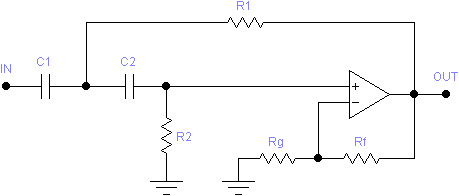

The highpass circuit has no attentuation stage, so H must be at least 1, and higher for Q > 0.917. If too low a value is entered for H, it is increased as necessary to make the circuit solvable.
For either circuit, to achieve a result with minimum component sensitivity without regard to gain, set H = 0. The program will automatically choose the optimal value for K (and thus H). The resulting gain will be output when determining the performance.
Using the Program
First type in the program and save it, or read it from a previously recorded magnetic card. The card should be labelled as follows:
LOWSENSITIVITY SALLENKEY FILTER DESIGN

f  Q  H  C  R_{F}
LP→R_{G}C_{1}C_{2}R_{1}R_{2}R_{3}  HP→R_{G}C_{1}C_{2}R_{1}R_{2}  →f,Q,H
Filter Design from Specifications
Example: Design a 500Hz lowpass unitygain filter with a Q of 2, using capacitors in the 10nF range, and a 47kΩ resistor for R_{F}:
Description  Keystrokes  Display

Use engineering notation  ENG 2  0.00 00
Enter f  500 a
500. 00
Enter Q  2 b
2.00 00
Enter H  1 c
1.00 00
Enter C  10 EEx CHS 9 d
10.0 09
Enter R_{F}  47 EEx 3 e
47.0 03
Compute R_{G}  A  79.5 03
Enter realworld R_{G} and compute C_{1}  82 EEx 3 R/S
31.6 09
Enter realworld C_{1} and compute C_{2}  33 EEx CHS 9 R/S
3.16 09
Enter realworld C_{2} and compute R_{1}  3.3 EEx CHS 9 R/S
15.4 03
Enter realworld R_{1} and compute R_{2}  15 EEx 3 R/S
95.9 03
Enter realworld R_{2} and compute R_{3}  100 EEx 3 R/S
26.1 03
Enter realworld R_{3}  27 EEx 3 R/S
27.0 03
Notes
If a resistor is to be omitted (open circuit), this program displays a value of zero for the resistance. This is different than some of my other programs, which display a “large” value representing infinity.
When the value for R_{G} is displayed as zero, meaning it can be omitted, the value of R_{F} will not matter any more, and R_{F} can be replaced by a direct connection.
Filter Performance from Chosen Components
During the calculation of the solution above, we’ve entered realworld values in response to each computed value. The realworld values of C_{1} and C_{2} are used when computing the values of R_{1}, R_{2}, and R_{3}. However, the realworld values of each of those resistors does not affect the computed value of the remaining ones. Thus, the final filter may not perform exactly as specified. To find out how it does perform, follow these steps:
Description  Keystrokes  Display

Compute resulting f  E  491. 00
Compute resulting Q  R/S  1.86 00
Compute resulting H  R/S  1.01 00
A HighPass Example
Using the parameters already entered for the lowpass filter above, determine the components for a highpass filter:
Description  Keystrokes  Display

Compute R_{G} for highpass filter  C  79.5 03
Enter realworld R_{G} and compute C_{1}  82 EEx 3 R/S
31.4 09
Enter realworld C_{1} and compute C_{2}  33 EEx CHS 9 R/S
3.18 09
Enter realworld C_{2} and compute R_{1}  3.3 EEx CHS 9 R/S
9.59 03
Enter realworld R_{1} and compute R_{2}  10 EEx 3 R/S
97.0 03
Enter realworld R_{2}  100 EEx 3 R/S
0.00 00
Now determine the predicted actual performance:
Description  Keystrokes  Display

Compute resulting f  E  482. 00
Compute resulting Q  R/S  1.96 00
Compute resulting H  R/S  1.57 00
Notice that H is higher than the specified unity gain. This is because the filter is not possible to construct with unity gain when Q = 2. The smallest possible gain is H = 1.59 (which due to realworld components, has become Q = 1.89 and H = 1.57). To achieve H = 1, you will need either a preattenuator with low output impedance, or a postattenuator with high input impedance.
Program Listing
Line  Instruction  Comments

01♦  LBL “SK”
02♦  LBL a  Enter and store f
03  STO 11
04  RTN
05♦  LBL b  Enter and store Q
06  STO 12
07  RTN
08♦  LBL c  Enter and store H (gain)
09  STO 13
10  RTN
11♦  LBL d  Enter and store C (capacitor scale)
12  STO 00
13  RTN
14♦  LBL e  Enter and store R_{F}
15  STO 04
16  RTN
17♦  LBL A  Lowpass filter: R_{G},C_{1},C_{2},R_{1},R_{2},R_{3}
18  CF 00
19  GTO 00
20♦  LBL C  Highpass filter: R_{G},C_{1},C_{2},R_{1},R_{2}
21  SF 00
22♦  LBL 00  Forward solution
23  RCL 12
24  2.2
25  ×
26  .9
27  −
28  RCL 12
29  .2
30  +
31  ÷  (2.2Q0.9)/(Q+0.2)
32  1
33  x≤y?
34  x↔y
35  STO 15  K = max(1,(2.2Q0.9)/(Q+0.2))
36  RCL 13
37  x>y?
38  STO 15  K = max(H,1,(2.2Q0.9)/(Q+0.2))
39  RCL 15
40  ÷  H/K
41  x=0?
42  1  Use α = 1 if H/K = 0 (because H was 0)
43  FS? 00
44  1  Always use α = 1 for a highpass filter
45  STO 14  α = H/K (always 1 for a highpass filter or H = 0)
46  RCL 04
47  RCL 15
48  1
49  −
50  x≠0?
51  ÷  R_{G} = R_{F}/(K1) if K ≠ 1, or zero if K = 1
52  R/S  Display R_{G} and let user change it
53  STO 05
54  .1  Initialize n to √0.1;
55  √x
56  XEQ 07  n(1+√(1+4Q^{2}(1+n^{2})(K1)))/(2Q(1+n^{2}))
57  RCL 08  √0.1 was stored here by subroutine 7
58  x≤y?
59  x↔y  max(n, n(1+√(1+4Q^{2}(1+n^{2})(K1)))/(2Q(1+n^{2})))
60  FS? 00  Highpass filter?
61  XEQ 06  2nQ/(1+√(1+4Q^{2}(K1n^{2})))
62  STO 08
63  RCL 00
64  RCL 08
65  ÷  C_{1} = C/n
66  R/S  Display C_{1} and let user change it
67  STO 06
68  RCL 08
69  RCL 00
70  ×  C_{2} = nC
71  R/S  Display C_{2} and let user change it
72  STO 07
73  RCL 06
74  ×
75  √x  √(C_{1}C_{2})
76  XEQ 04  Multiply by 2πf and take reciprocal
77  STO 09  N = 1/(2πf√(C_{1}C_{2}))
78  RCL 07
79  RCL 06
80  ÷
81  √x  n = √(C_{2}/C_{1})
82  XEQ 03  2nQ/(1+√(1+4Q^{2}(K1n^{2}))) or n(1+√(1+4Q^{2}(1+n^{2})(K1)))/(2Q(1+n^{2}))
83  STO 08
84  RCL 09
85  ×
86  STO 03  (R_{1}R_{3}) = nN
87  RCL 14
88  ÷  R_{1} = (R_{1}R_{3})/α
89  R/S  Display R_{1} and let user change it
90  STO 01
91  RCL 09
92  RCL 08
93  ÷  R_{2} = N/n
94  R/S  Display R_{2} and let user change it
95  STO 02
96  RCL 03
97  1
98  RCL 14
99  −  ( 1α (R_{1}R_{3}) )
100  x≠0?
101  ÷  R_{3} = (R_{1}R_{3})/(1α) if α ≠ 1, or zero otherwise
102  R/S  Display R_{3} and let user change it
103  STO 03
104  RTN
105♦  LBL 04  Multiply by 2πf and take reciprocal
106  RCL 11  f
107  ×
108♦  LBL 01  Multiply by 2π and take reciprocal
109  2
110  ×
111  π
112  ×
113  1/x
114  RTN
115♦  LBL 03  Compute either 2xQ/(1+√(1+4Q^{2}(K1x^{2}))) or x(1+√(1+4Q^{2}(1+x^{2})(K1)))/(2Q(1+x^{2}))
116  FS? 00  Highpass filter?
117  GTO 07
118♦  LBL 06  Subroutine to compute 2xQ/(1+√(1+4Q^{2}(K1x^{2})))
119  STO 08  Save x for later use
120  RCL 12
121  2
122  ×  ( 2Q x )
123  ×  ( 2xQ )
124  LASTx  ( 2Q 2xQ )
125  x^{2}  ( 4Q^{2} 2xQ )
126  RCL 15
127  1
128  −
129  RCL 08
130  x^{2}
131  −  ( K1x^{2} 4Q^{2} 2xQ )
132  ×  ( 4Q^{2}(K1x^{2}) 2xQ )
133  XEQ 09  ( 1+√(1+4Q^{2}(K1x^{2})) 2xQ )
134  ÷
135  RTN
136♦  LBL 07  Subroutine to compute x(1+√(1+4Q^{2}(1+x^{2})(K1)))/(2Q(1+x^{2}))
137  STO 08  Save x in register 8 for later use both by this subroutine and the caller
138  XEQ 08  ( 2Q 1+x^{2} )
139  x^{2}
140  ×  ( 4Q^{2}(1+x^{2}) )
141  RCL 15
142  1
143  −  ( K1 4Q^{2}(1+x^{2}) )
144  ×  ( 4Q^{2}(1+x^{2})(K1) )
145  XEQ 09  ( 1+√(1+4Q^{2}(1+x^{2})(K1)) )
146  RCL 08
147  ×  ( x(1+√(1+4Q^{2}(1+x^{2})(K1))) )
148  RCL 08
149  XEQ 08  ( 2Q 1+x^{2} x(1+√(1+4Q^{2}(1+x^{2})(K1))) )
150  ×  ( 2Q(1+x^{2}) x(1+√(1+4Q^{2}(1+x^{2})(K1))) )
151  ÷
152  RTN
153♦  LBL 08  Subroutine to populate stack with 2Q 1+x^{2}
154  x^{2}
155  1
156  +
157  RCL 12
158  2
159  ×
160  RTN
161♦  LBL 09  Subroutine to compute 1+√(1+x)
162  1
163  +
164  √x
165  1
166  +
167  RTN
168♦  LBL E  Compute actual f, Q, and Gain
169  XEQ 02  R_{1} or (R_{1}R_{3})
170  RCL 06
171  ×
172  STO 08  Save R_{1}C_{1} for use in calculating Q
173  RCL 02
174  RCL 07
175  ×
176  STO 09  Save R_{2}C_{2} for use in calculating Q
177  ×
178  √x
179  XEQ 01  Multiply by 2π and take reciprocal
180  STO 10  Save actual f for use in calculating Q
181  R/S  Display actual f
182  RCL 09  ( R_{2}C_{2} )
183  RCL 08  ( R_{1}C_{1} R_{2}C_{2} )
184  FS? 00  Highpass filter?
185  x↔y  ( R_{2}C_{2} R_{1}C_{1} )
186  1
187  RCL 15
188  −
189  ×
190  +
191  XEQ 02  R_{1} or (R_{1}R_{3})
192  RCL 07
193  ×
194  +
195  RCL 10  Recall actual frequency
196  ×
197  XEQ 01  Multiply by 2π and take reciprocal
198  R/S  Display actual Q
199  RCL 04
200  RCL 05
201  x≠0?
202  ÷
203  1
204  +
205  XEQ 02  R_{1} or (R_{1}R_{3})
206  ×
207  RCL 01
208  ÷
209  RTN  Return actual Gain
210♦  LBL 02  Return either R_{1} or (R_{1}R_{3})
211  RCL 01
212  FS? 00  Highpass filter?
213  RTN  Return just R_{1}
214  1/x
215  RCL 03
216  x≠0?  R_{3} exists? (0 means not)
217  1/x
218  +
219  1/x
220  RTN
Registers and Flags
Register  Use

00  C – capacitor scale
01,02,03  R_{1}, R_{2}, R_{3} – filter resistors
04,05  R_{F}, R_{G} – feedback resistors
06,07  C_{1}, C_{2} – capacitors
08  n – variable used during computation
09  N – variable used during computation
11  f – cutoff frequency
12  Q – filter quality
13  H – overall gain
14  α – input attenuator gain
15  K – internal gain
10  Temporary register
Flag  Meaning

00  Highpass filter
Revision History
2008Dec21 — Initial release.
References
1. Analysis of the SallenKey Architecture (Rev.B), Texas Instruments Application Report SLOA024B, James Karki, 2002
2. LowSensitivity, Lowpass Filter Design, National Semiconductor (now Texas Instruments) Application Note OA27, Kumen Blake, 1996
3. LowSensitivity, Highpass Filter Design, National Semiconductor (now Texas Instruments) Application Note OA29, Kumen Blake, 1996
